Resaltar:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                automatic PCB hotbar soldering machine, high speed PCB depaneling machine, YSPP-2A hotbar soldering machine


Peso:	110 kg	Tolerancia a la temperatura:	+2℃
Área de trabajo:	110m m x 150m m	Presión de aire:	0.5-0.7MPA
Tamaño de la máquina:	1000mm660mm700mm	Fuente de alimentación:	AC200V
Paso de sellado térmico:	0,25 mm	Fuerza de unión:	3.900N
Control de temperatura:	PID de circuito cerrado	Control de presión:	Programable digitalmente
Activador de ciclo:	Sensor de presión en tiempo real	Tipo de termodo:	Flotante
Accesorios del producto:	2X	Módulo de alineación:	CCD opcional
Lógica de control:	microprocesador

Peso:	110 kg
Tolerancia a la temperatura:	+2℃
Área de trabajo:	110m m x 150m m
Presión de aire:	0.5-0.7MPA
Tamaño de la máquina:	1000mm660mm700mm
Fuente de alimentación:	AC200V
Paso de sellado térmico:	0,25 mm
Fuerza de unión:	3.900N
Control de temperatura:	PID de circuito cerrado
Control de presión:	Programable digitalmente
Activador de ciclo:	Sensor de presión en tiempo real
Tipo de termodo:	Flotante
Accesorios del producto:	2X
Módulo de alineación:	CCD opcional
Lógica de control:	microprocesador

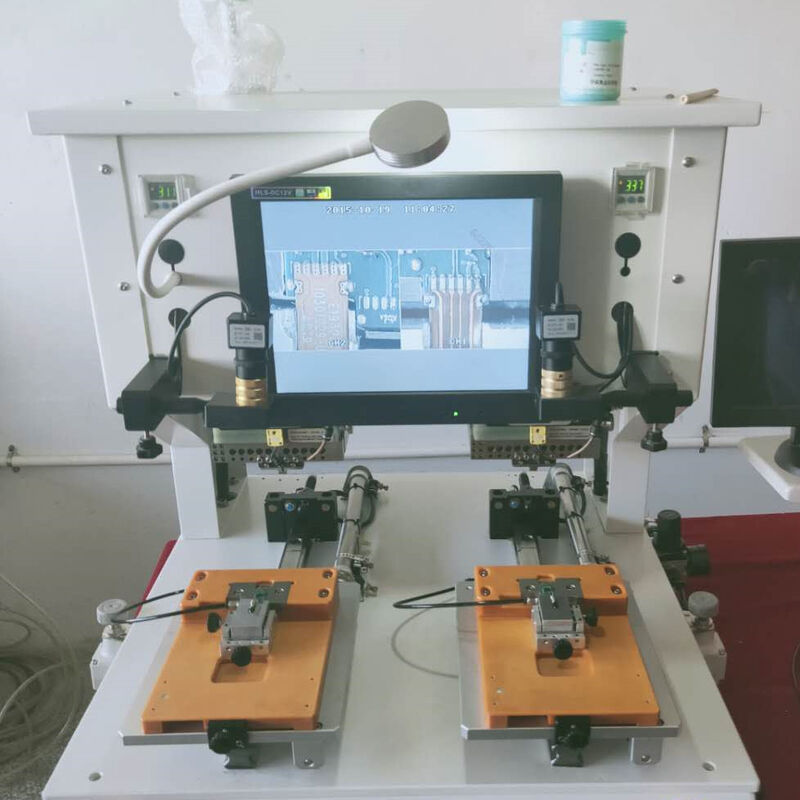

High Speed Automatic PCB HotBar Soldering Machine YSPP-2A

Advanced automated soldering solution for precision PCB assembly with high-speed rotary table design and microprocessor control.

Technical Specifications

Microprocessor-based controller for precise and consistent temperature control
Unique pulsed heat thermos for uniform temperature distribution with fast heating and cool-down
Flexible programmable profiles for targeted idle, preheat and reflow heating
Floating thermos and digital pressure switch for optimal pressure distribution
Optional CCD camera system with magnification lens for fine-pitch positioning

Key Features

Extremely short cycle time with efficient rotary table design
Simultaneous product loading and unloading during heat sealing process
High quality heat seal application up to 0.25mm pitch
Pneumatic bonding head providing up to 3,900N force
Digital programmable pressure control with LCD display
Closed loop PID temperature control with visible LED display
Bonding cycle triggered by real-time pressure sensor
Floating Thermode ensures consistent pressure and heat transfer
Precision product fixtures with micrometer alignment and vacuum component fixation
Optional CCD alignment module for fine pitch applications
Full microprocessor logic control system

Packaging & Shipping

Professional packaging ensures safe delivery worldwide with comprehensive shipping options.

Manufacturer Information

YUSH Electronic Technology Co., Ltd. was founded in 2004 and is located in Jiangsu, China's manufacturing hub. The company specializes in professional PCB separator and depaneling electronic equipment machinery.

With advanced production equipment and an experienced development team (half with over 10 years in electronic equipment industry), YUSH has become one of China's largest PCB separator production bases. The company focuses on product quality, safety, and innovation, offering high-quality, stable performance, cost-effective solutions that improve production yields and enhance customer competitiveness.

YUSH designs various PCB separation solutions including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router types, serving customers worldwide with reliable quality and competitive pricing.
