Resaltar:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                6 axis automatic soldering robot, 5 axis PCB depaneling machine, 4 axis automatic soldering machine


Peso:	67 kilogramos	potencia total:	500W
Suministro de aire:	0.3-0.8MPa	Potencia de calefacción:	400W
Rango de temperatura:	180~450℃	Cantidad de planchas:	1
Cantidad de eje:	6	Rango del eje X:	460 mm
Rango del eje Y:	300 milímetros	Rango del eje Z:	100 milímetros
Velocidad máxima:	800 mm/segundo	Precisión de la repetibilidad:	±0,01 mm
Peso máximo:	20 kilos	Fuente de energía:	CA 220 V 50 Hz
Dimensión exterior:	754 mm × 515 mm × 808 mm

Peso:	67 kilogramos
potencia total:	500W
Suministro de aire:	0.3-0.8MPa
Potencia de calefacción:	400W
Rango de temperatura:	180~450℃
Cantidad de planchas:	1
Cantidad de eje:	6
Rango del eje X:	460 mm
Rango del eje Y:	300 milímetros
Rango del eje Z:	100 milímetros
Velocidad máxima:	800 mm/segundo
Precisión de la repetibilidad:	±0,01 mm
Peso máximo:	20 kilos
Fuente de energía:	CA 220 V 50 Hz
Dimensión exterior:	754 mm × 515 mm × 808 mm

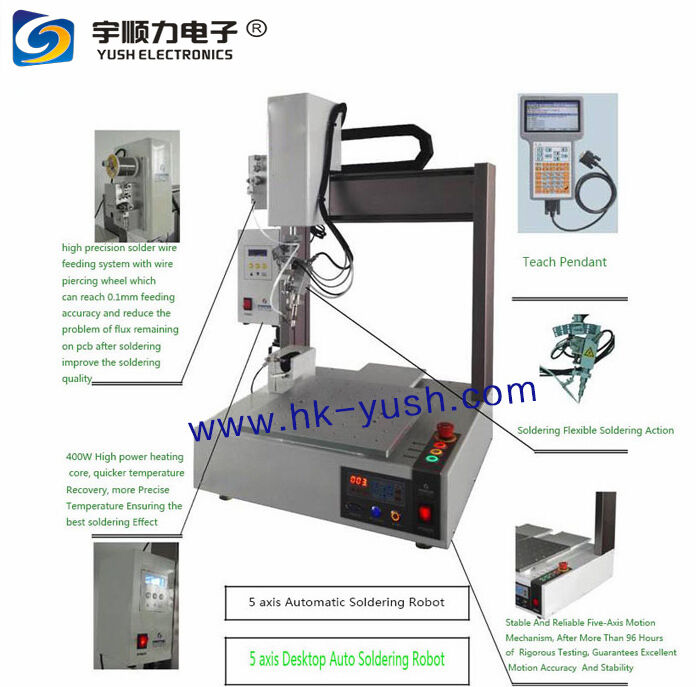

6 axis 5 axis 4 axis Automatic Soldering Robot

6-Axis Automatic Soldering Robot

Advanced multi-axis automated soldering system with precision control and intelligent features for industrial manufacturing applications.

Key Features & Capabilities

Touch screen + wireless remote control teach pendant operation
Advanced controller with human-machine interaction, powerful data processing, and network communication
Fast high-precision temperature control technology with 400W soldering power (optional)
Cloud-based connectivity for fault pre-warning, diagnostics, and intelligent after-sales service
Built-in blow-type tip cleaning box
Fourth generation welding head with precision cylinder, rail buffer, and angle adjustment
Sheet metal base with CNC machining for precision, consistency, and operational stability
Integrated tin-broken system prevents tin slag explosion during operation
X, Y, and Z axes feature double guide structure for enhanced stability
Digital programming with direct parameter modification and one-click operations
Unlimited procedural recording capabilities
Optional pneumatic soldering capability
Anti-collision function reduces accidental damage
Multi-user authority management prevents parameter changes
Freely adjustable assembly line width for most product soldering
System display languages: Chinese, English, and Japanese
400W high-frequency eddy current silver wire heating system

Technical Specifications

Product Name	YS-S330
Heating Power	400W
Temperature Range	180~450℃
Quantity of Irons	1
Work Platforms	2
Axis Quantity	6
Drive System	Imported stepper motor with imported timing belt
Work Range X-axis	460 mm
Work Range Y-axis	300 mm
Work Range Z-axis	100 mm
Work Range R-axis	360°
Max Speed X-axis	800 mm/Second
Max Speed Y1-axis	800 mm/Second
Max Speed Y2-axis	800 mm/Second
Max Speed Z-axis	500 mm/Second
Max Speed R-axis	360°/Second
Max Weight	20 kg
Repeatability Precision X-axis	±0.01 mm
Repeatability Precision Y-axis	±0.01 mm
Repeatability Precision Z-axis	±0.01 mm
Repeatability Precision R-axis	±0.01°
Max Height	100 mm
Program Quantity	1000
Soldering Points	4000
Control System	ARM + DSP
Additional Functions	3-5
Peripheral Interface	RS232, USB
Input/Output	12
Total Power	500W
Power Source	AC 220V 50Hz
Air Supply	0.3-0.8 MPa
Working Environment	0~40℃, Humidity 20~90%
Dimensions	754mm (X) × 515mm (Y) × 808mm (Z)
Weight	67 kg
