Resaltar:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT production line unloader, PCB depaneling stacking machine, smart stacking unloader machine


Peso:	200 kilos	Presión de aire:	0,4-0,6 MPa
Fuente de alimentación:	monofásico 220V50HZ	Dimensiones:	113015001660mm
Dimensiones del cargador:	320355570mm	Dimensiones de PCB:	L330*W250
Paso de elevación:	10.20.30.40.50	potencia del motor:	90W
sistema de control:	Controlador programable PLC	Hora de comer:	<5 Seconds="">
Material del tren guía:	Perfil de aluminio esmerilado	Tipo de cadena:	Cadena de plástico de los mil pájaros.
Tipo de motor:	motor de ángulo recto	Mecanismo de accionamiento:	Tornillo
Panel de control:	Pantalla táctil LED TFT

Peso:	200 kilos
Presión de aire:	0,4-0,6 MPa
Fuente de alimentación:	monofásico 220V50HZ
Dimensiones:	113015001660mm
Dimensiones del cargador:	320355570mm
Dimensiones de PCB:	L330*W250
Paso de elevación:	10.20.30.40.50
potencia del motor:	90W
sistema de control:	Controlador programable PLC
Hora de comer:	<5 Seconds="">
Material del tren guía:	Perfil de aluminio esmerilado
Tipo de cadena:	Cadena de plástico de los mil pájaros.
Tipo de motor:	motor de ángulo recto
Mecanismo de accionamiento:	Tornillo
Panel de control:	Pantalla táctil LED TFT

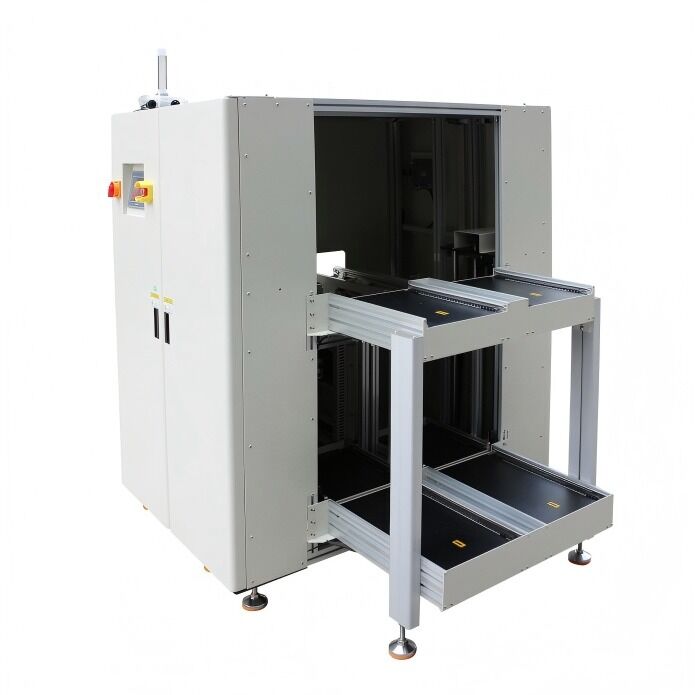

Smart Stacking Unloader Is Suitable for SMT Production Lines.

Smart Stacking Unloader for SMT Production Lines

Product Overview

This automated stacking unloader is specifically designed for SMT production lines, providing efficient PCB handling with precise control and reliable operation.

Key Features

Robust and stable mechanical design for continuous operation
PLC control system with programmable sheet feeding timing
Rapid operation with cycle times under 5 seconds
LED TFT touch screen control panel for intuitive operation
Pass-through function for continuous PCB board transfer

Technical Specifications

Parameter	Specification
External Dimensions	1130 × 1500 × 1660 mm
Guide Rail System	National standard frosted aluminum profile with thousand-bird plastic chain
Drive System	90W Taiwan special right-angle motor driving ball screw for magazine vertical movement
Magazine Specification	320mm (W) × 355mm (L) × 570mm (H)
PCB Specification	330mm (L) × 250mm (W)
Lift Platform Pitch Selection	10, 20, 30, 40, 50 mm increments
Control System	Huichuan PLC programmable controller
Power Supply	Single-phase 220V 50HZ
Air Source Requirement	0.4 - 0.6 MPa
Electrical Cabinet	Included (1 set)
