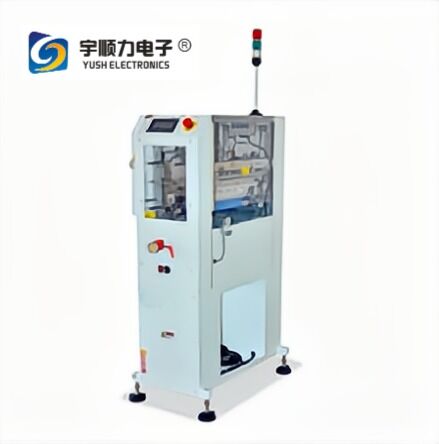

Name: PCB Double-sided Cleaner-YS-2A050
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-2A050
Price: 253.00 USD
Availability: InStock

Detalles del producto

Lugar de origen: Cantón, China

Nombre de la marca: YUSH

Certificación: CE

Número de modelo: YS-2A050

Pago y términos de envío

Cantidad de orden mínima: 1 juego

Precio: $6,500 / set

Obtenga el mejor precio

Detalles del producto

Descripción del producto

Resaltar:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB double-sided cleaner machine, YS-2A050 PCB cleaner, double-sided PCB depaneling equipment


Peso:	180 kg	Voltaje:	220V
Fuente de energía:	220VAC 50/60Hz	Componentes principales:	Motor
eliminación estática:	50 V a 100 V	Eliminación de polvo:	99% contaminantes
monitoreo electrostático:	en tiempo real	Adhesión del polvo:	Material de polímero
Modo de limpieza:	limpieza de contacto	Sistema de alarma:	Audible/representación visual
Rango de vigilancia:	Personalizable	Extracción de polvo:	Sistema de vacío
Cepillo antiestático:	filtro de 4 capas	Recubrimiento adhesivo:	Espesor optimizado
Reducción estática:	1kV a 50v-100v

Peso:	180 kg
Voltaje:	220V
Fuente de energía:	220VAC 50/60Hz
Componentes principales:	Motor
eliminación estática:	50 V a 100 V
Eliminación de polvo:	99% contaminantes
monitoreo electrostático:	en tiempo real
Adhesión del polvo:	Material de polímero
Modo de limpieza:	limpieza de contacto
Sistema de alarma:	Audible/representación visual
Rango de vigilancia:	Personalizable
Extracción de polvo:	Sistema de vacío
Cepillo antiestático:	filtro de 4 capas
Recubrimiento adhesivo:	Espesor optimizado
Reducción estática:	1kV a 50v-100v

PCB Double-sided Cleaner-YS-2A050

Advanced PCB Surface Cleaning Machine for SMT Lines

The YS-2A050 PCB Surface Cleaning Machine provides comprehensive cleaning solutions for modern SMT production lines, addressing critical contamination and static electricity challenges.

Why PCB Surface Cleaning is Essential

Removes dust and contaminants accumulated during PCB handling, laser marking, and storage
Eliminates static electricity that causes PCB surface dust attraction
Prevents welding defects caused by microscopic contaminants on shrinking SMT components
Avoids potential short circuits and solder joint defects from larger contaminants
Provides superior alternative to high-pressure air cleaning with reduced noise, energy consumption, and secondary pollution
Establishes essential process step for PCB surface cleaning and static elimination

Key Technical Features

Contact cleaning technology for thorough and durable PCB surface cleaning
Specialized structure effectively removes 99% of visible surface contaminants
Advanced electrostatic elimination technology exceeding industry standards
Newly developed anti-static brush dust removal system
Anti-static roller dust adhesion mechanism
Special polymer dust adhesion paper rolls with anti-static properties
Optimized adhesive coating thickness for superior contaminant capture
Real-time electrostatic pressure monitoring capability
Vacuum dust collection system with pipeline blockage alarm
MES and external system integration interfaces
CE certified safety level design
Customized specifically for SMT mounting requirements

Advanced Cleaning Systems

Dust Adhesion System
Japanese imported high-precision anti-static sticky rollers provide contact cleaning with thorough, lasting results. Reduces static electricity from 1kV to 50v-100v, preventing damage to electronic components with world-leading static elimination speed.

Brush Dust Removal System
Special anti-static brushes imported from Japan combined with four-layer air filtration vacuum dust extraction prevent secondary air pollution. Mechanical dust extraction design simplifies maintenance and refueling.

Polymer Dust Technology
Special polymer material dust adhesion paper rolls with anti-static function and optimized adhesive coating thickness. No cutting required, easy to use, safe operation, 20% waste reduction with time savings.

Electrostatic Pressure Monitoring
Online real-time electrostatic monitoring customizable to customer requirements. Touch screen data recording with adjustable monitoring voltage ranges. Dual-loop monitoring with audible and visual alarms. Industry-leading surface electrostatic monitoring sensors support different cleaning modes for various substrates.

Available Options

A - Single machine automatic width adjustment
B - Automated board handling system
C - Fuji Nexim, Panasonic iLNB system docking
D - CE security interlock
E - Electrostatic monitoring system
F - Air pressure monitoring system
G - Anti-PCB warping device
H - Other custom requirements

Packaging & Shipping

Our Services

About YUSH Electronic Technology

YUSH Electronic Technology Co., Ltd. is a specialized manufacturer and trader focused on research, development, and production of PCB depaneling equipment, hot bar welding machines, and touch screen film sticking machines. Located in Dongguan City, Guangdong Province, China, all products comply with international quality standards and serve diverse global markets.
