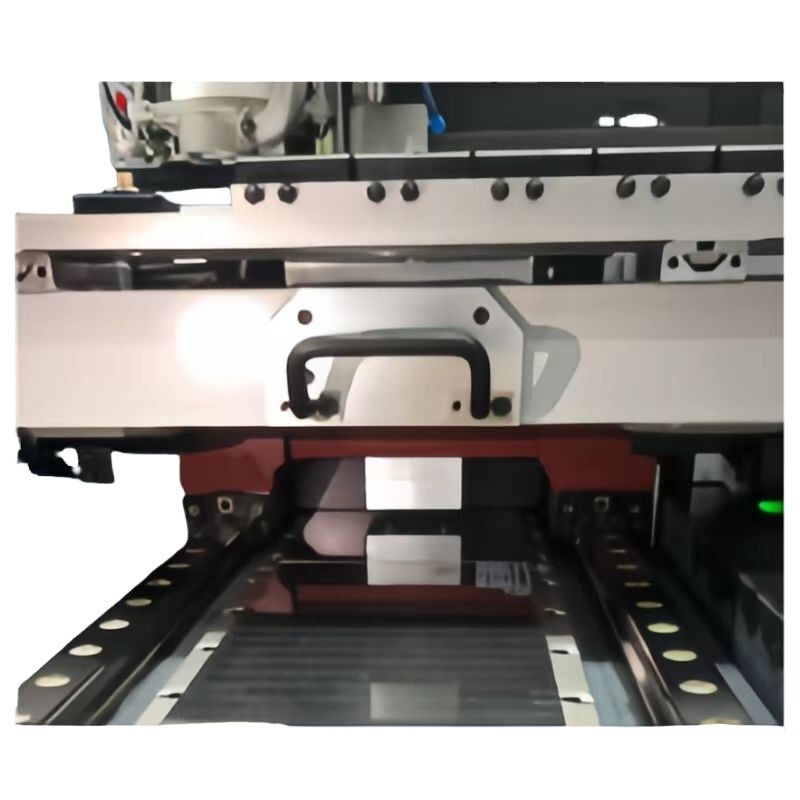

YS-F6MH High Quality High Precision High Rigidity PCB Drilling Machine

Product Overview

The YS-F6MH PCB Drilling Machine delivers exceptional precision and rigidity for demanding PCB manufacturing applications. Engineered for superior performance with thick plates and copper plates, this machine features advanced air bearing technology with low air consumption and higher radial stiffness.

Air bearing system with low air consumption
Higher radial stiffness for improved stability
Optimized for thick plates and thick copper plates
Large torque spindle for demanding applications

Equipment Configuration

Serial Number	Name	Specifications and Models	Quantity
1.	Host Machine	YS-F6MH	1 set
2.	Control System	Sieb & Meyer Control System	1 set
3.	Linear Motor (X, Y, Z)	High Performance Linear Motor Drive	9 sets
4.	Principal Axis	200KRPM	6 sets
5.	Grating Scale	High Precision Grating Ruler (0.5μm resolution)	9 sets
6.	Guide Element	Imported High Precision Linear Guide Rail	9 sets
7.	Broken Tool Detection	Capacitive Cutter Detection	6 sets
8.	Tool Measuring System	Mingwei Tool Detector	6 sets
9.	Press Foot Switching	Flat Press Foot Switch	6 sets
10.	Dryer	Inlet Drier	1 set
11.	Air Holder	70L Gas Storage Tank	1 set
12.	Display	Liquid Crystal Display	1 set

Technical Specifications

X,Y Maximum Moving Speed	80m/min
Z-axis Maximum Velocity	35m/min
Tool Magazine Capacity	6-300
X, Y, Z Axis Measurement System	High Precision Grating Ruler (0.5μm resolution)
Positioning Clamping System	SMC Pneumatic Automatic Positioning Clamp
Broken Tool Detection System	Capacitive Cutter Detection
Spindle Speed	20,000-200,000 rpm
Positioning Accuracy	±0.004mm
Repeated Positioning Accuracy	±0.0025mm
Drilling Accuracy	±0.018mm
Depth Control Accuracy (Optional)	±0.015mm
Minimum Hole Diameter	4mil (φ0.1mm)
Maximum Hole Diameter	256mil (φ6.5mm)
Table Size	6-635mm × 772mm
Effective Working Range	6-622mm × 755mm (24.5" × 29.7")
Power Source	3PH-AC380V+N+PE, 50/60Hz
Maximum Power Consumption	15KVA
Air Pressure	6.5-7.5bar
Noise	≤75dBA
Operating Temperature	20℃-24℃
Operating Humidity	45-65%
Overall Dimensions (L × W × H)	4700mm × 2000mm × 1610mm
