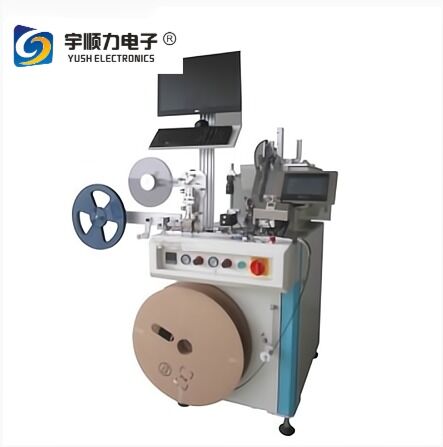

YS-12T-Automatic Tape and Reel Packaging Equipment

Detalles del producto

Lugar de origen: Cantón, China

Nombre de la marca: YUSH

Certificación: CE

Número de modelo: YS-12T

Pago y términos de envío

Cantidad de orden mínima: 1 juego

Precio: $6,000 / set

Obtenga el mejor precio
Resaltar:

automatic tape and reel machine

,

PCB depaneling equipment with warranty

,

YS-12T tape reel packaging

Peso:
160 kilos
Voltaje:
220 VCA
Fuente de energía:
Accesorios para el transporte de vehículos
Presión de aire de trabajo:
0,40 ~ 0,6 MPa
Capacidad:
3K-15K UPH
sistema de control:
Controlador lógico programable+pantalla táctil+servomotor
Control de temperatura:
Control de la temperatura del PID
Alimentar y recibir:
Discos de goma y discos de papel conformes a la norma EIA-481
Ancho de la cinta:
12,16mm
Forma de aislamiento:
Sellos fríos y calientes
Voltaje de entrada:
CA 220 V/50 Hz.
Corriente máxima:
10A
Tamaño de la máquina:
2030*528*583(largo*ancho*alto)
Peso neto:
160 kg
Configuración selectiva:
Sistema de detección de imágenes
Peso:
160 kilos
Voltaje:
220 VCA
Fuente de energía:
Accesorios para el transporte de vehículos
Presión de aire de trabajo:
0,40 ~ 0,6 MPa
Capacidad:
3K-15K UPH
sistema de control:
Controlador lógico programable+pantalla táctil+servomotor
Control de temperatura:
Control de la temperatura del PID
Alimentar y recibir:
Discos de goma y discos de papel conformes a la norma EIA-481
Ancho de la cinta:
12,16mm
Forma de aislamiento:
Sellos fríos y calientes
Voltaje de entrada:
CA 220 V/50 Hz.
Corriente máxima:
10A
Tamaño de la máquina:
2030*528*583(largo*ancho*alto)
Peso neto:
160 kg
Configuración selectiva:
Sistema de detección de imágenes
YS-12T-Automatic Tape and Reel Packaging Equipment
YS-12T Automatic Tape and Reel Packaging Equipment
The YS-12T Auto Component Taping Machine provides automated packaging solutions for electronic components with precision and efficiency.
Key Features
  • Automatic feeding via feeding tube with manipulator placement
  • Designed for SOP8, SOP14, and SOP16 component packaging
  • Compatible with 12mm and 16mm wide carrier tapes
  • Optional image detection system for quality control
  • Supports both hot and cold sealing methods
Technical Specifications
Application Automatic Taping for SOP8, SOP14, SOP16 Components
Capacity 3,000 - 15,000 UPH (varies by product type)
Control System PLC + Touch Screen + Servo Motor
Temperature Control PID Temperature Control
Tape Width 12mm, 16mm
Input Voltage AC220V/50Hz
Maximum Current 10A
Working Air Pressure 0.40-0.6Mpa (Dry and Clean)
Machine Dimensions 2030×528×583mm (L×W×H)
Net Weight 160kg (including vibratory disc)
Operational Process
  • Automatic product feeding via feeding rack system
  • Precision placement from vibratory disc to carrier belt
  • Tape-weaving module completes sealing process
  • Intuitive touch screen interface for machine operation
  • Optional image detection for orientation, presence, pin verification, and batch control
Packaging & Shipping
