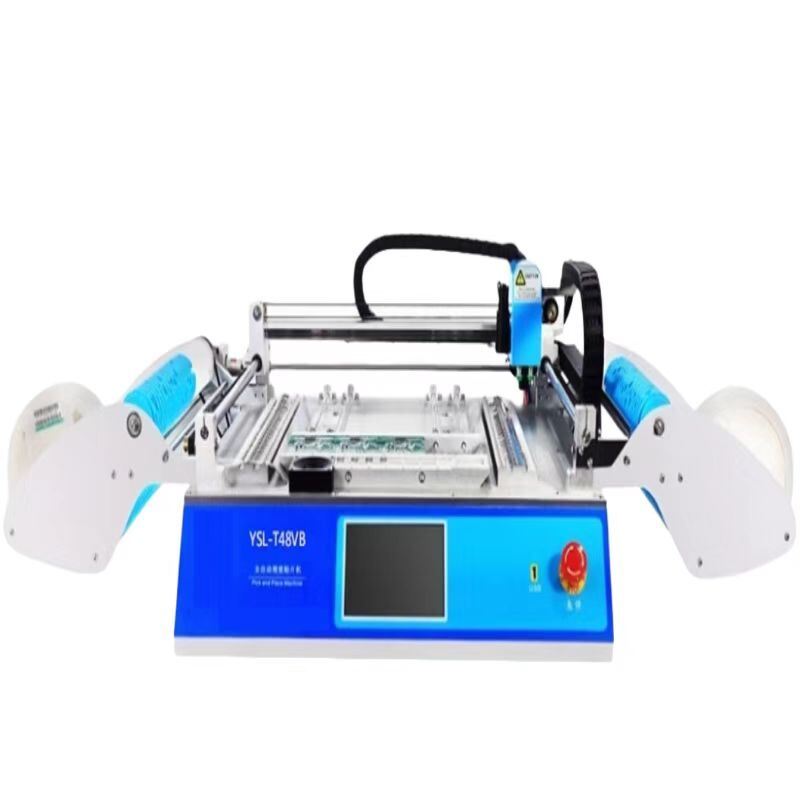

High Precision 2 Heads Desktop Vision Pick and Place Machine

Detalles del producto

Lugar de origen: Jiangsu, China

Nombre de la marca: YUSH

Número de modelo: YS-T48VB

Pago y términos de envío

Cantidad de orden mínima: 1 juego

Precio: $2,800 / set

Obtenga el mejor precio
Resaltar:

2 heads desktop pick and place machine

,

vision pick and place machine for PCB

,

high precision PCB depaneling machine

Peso:
50 kilos
Dimensiones:
1310 mm (largo) x 710 mm (ancho) x 340 mm (alto)
Fuente de alimentación:
AC220V (50 Hz, monofásico) /AC110 V (60 Hz, monofásico); 300 w
Suministro de aire:
No se requiere fuente de alimentación externa
Generación del vacío:
Bomba de vacío incorporada
Cantidad de cabezas de montaje:
Dos
Velocidad de montaje:
4000CPH
Precisión de montaje:
0.025 mm
Tipo de componente:
Resistencia, condensador, diodo, SOT, SOP, QFP, QFN, BGA
Gama componente:
0402 a 22mmX22mm
Espesor de PCB:
0.6 mm~3.5 mm
Tamaño de placa de circuito impreso:
345 mm (largo) x 360 mm (ancho)
Componentes principales:
PLC, motor, rodamiento, caja de cambios, motor
Unidad XY:
Motor paso a paso con control de circuito cerrado.
Sistema operativo:
LINUX integrado
Peso:
50 kilos
Dimensiones:
1310 mm (largo) x 710 mm (ancho) x 340 mm (alto)
Fuente de alimentación:
AC220V (50 Hz, monofásico) /AC110 V (60 Hz, monofásico); 300 w
Suministro de aire:
No se requiere fuente de alimentación externa
Generación del vacío:
Bomba de vacío incorporada
Cantidad de cabezas de montaje:
Dos
Velocidad de montaje:
4000CPH
Precisión de montaje:
0.025 mm
Tipo de componente:
Resistencia, condensador, diodo, SOT, SOP, QFP, QFN, BGA
Gama componente:
0402 a 22mmX22mm
Espesor de PCB:
0.6 mm~3.5 mm
Tamaño de placa de circuito impreso:
345 mm (largo) x 360 mm (ancho)
Componentes principales:
PLC, motor, rodamiento, caja de cambios, motor
Unidad XY:
Motor paso a paso con control de circuito cerrado.
Sistema operativo:
LINUX integrado
High Precision 2 Heads Desktop Vision Pick and Place Machine
High Precision 2 Heads Desktop Vision Pick and Place Machine
Advanced desktop vision pick and place machine designed for high-precision component placement in PCB assembly applications.
High Precision 2 Heads Desktop Vision Pick and Place Machine 0 High Precision 2 Heads Desktop Vision Pick and Place Machine 1
Product Characteristics
  • X, Y shaft driven by stepping motor with closed loop control, inlet synchronous belt and linear rail drive
  • Built-in computer with embedded Linux operating system and 7-inch touch screen
  • Supports 58 sets of tape feeder stack positions (8mm-44, 12mm-8, 16mm-4, 24mm-2)
  • Minimum component support: 0402 device, 0.5mm pin spacing chip, and 4mm height shaped elements
  • Maximum PCB size support: 345mm × 360mm
  • 14 front IC bits with support for countertop custom IC tray and vibrating Fida
Technical Specifications
Dimensions 1310mm (L) × 710mm (W) × 340mm (H)
Weight 50kg
Power Supply AC220V (50Hz, single-phase) / AC110V (60Hz, single-phase); 300W
Air Supply No external power supply required
Vacuum Generation Built-in vacuum pump
Mounting Head Quantity Two
Mounting Speed 4000 CPH (under optimal conditions)
Mounting Accuracy 0.025mm
Component Types Resistance, capacitor exhaust resistance, cylindrical diode, aluminum capacitor, SOT, SOP, QFP, QFN, BGA, etc.
Component Range 0402 to 22mm × 22mm components
PCB Thickness 0.6mm - 3.5mm
PCB Size 345mm (L) × 360mm (W) standard
Packing & Delivery
High Precision 2 Heads Desktop Vision Pick and Place Machine 2 High Precision 2 Heads Desktop Vision Pick and Place Machine 3 High Precision 2 Heads Desktop Vision Pick and Place Machine 4 High Precision 2 Heads Desktop Vision Pick and Place Machine 5
Company Profile
High Precision 2 Heads Desktop Vision Pick and Place Machine 6 High Precision 2 Heads Desktop Vision Pick and Place Machine 7 High Precision 2 Heads Desktop Vision Pick and Place Machine 8 High Precision 2 Heads Desktop Vision Pick and Place Machine 9 High Precision 2 Heads Desktop Vision Pick and Place Machine 10 High Precision 2 Heads Desktop Vision Pick and Place Machine 11
YUSH Electronic Technology Co., Ltd was founded in 2005 and is located in the world manufacturing city Jiangsu, specializing in professional PCB separator and PCB depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacturing team, with half of them having over 10 years of experience in the electronic equipment industry.
Beginning in 2004, the company leadership invested in developing and manufacturing PCB separators and PCB depaneling machines. Since then, we have focused on product quality, safety, and innovation, producing many high-quality, stable performance, and cost-effective products that improve production yields, increase productivity, and enhance our customers' market competitiveness.
To date, we have designed different types of PCB separators and depaneling machines including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router models. Due to our good quality and reasonable pricing, our customers are located worldwide. YUSH has become one of the largest PCB separator production bases in China.
