Resaltar:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine with V groove, automatic PCB cutting machine, CNC PCB depaneling equipment


Peso:	185 kg	Fuerza:	10 kW
Voltaje:	220V, 110V	Tamaño de la máquina:	1560 × 2100 × 1585 mm
Altura de trabajo:	920 ± 50 mm	Presión de aire:	5kg/cm2
Tamaño de la bolsa de trabajo:	680 mm * 630 mm (máx.), 110 mm * 110 mm (mín.)	Espesor de procesamiento:	0,3 ~ 3,2 mm
Diámetro de la herramienta:	ø120mm	Diámetro interior:	ø25,4 mm
Diámetro del pasador de posicionamiento:	2 mm (6)	Velocidad de corte:	0 ~ 50 m/min
Componentes principales:	PLC, caja de cambios, motor, bomba	Materia prima:	Granito
Consumo de energía:	3.0kw

Peso:	185 kg
Fuerza:	10 kW
Voltaje:	220V, 110V
Tamaño de la máquina:	1560 × 2100 × 1585 mm
Altura de trabajo:	920 ± 50 mm
Presión de aire:	5kg/cm2
Tamaño de la bolsa de trabajo:	680 mm * 630 mm (máx.), 110 mm * 110 mm (mín.)
Espesor de procesamiento:	0,3 ~ 3,2 mm
Diámetro de la herramienta:	ø120mm
Diámetro interior:	ø25,4 mm
Diámetro del pasador de posicionamiento:	2 mm (6)
Velocidad de corte:	0 ~ 50 m/min
Componentes principales:	PLC, caja de cambios, motor, bomba
Materia prima:	Granito
Consumo de energía:	3.0kw

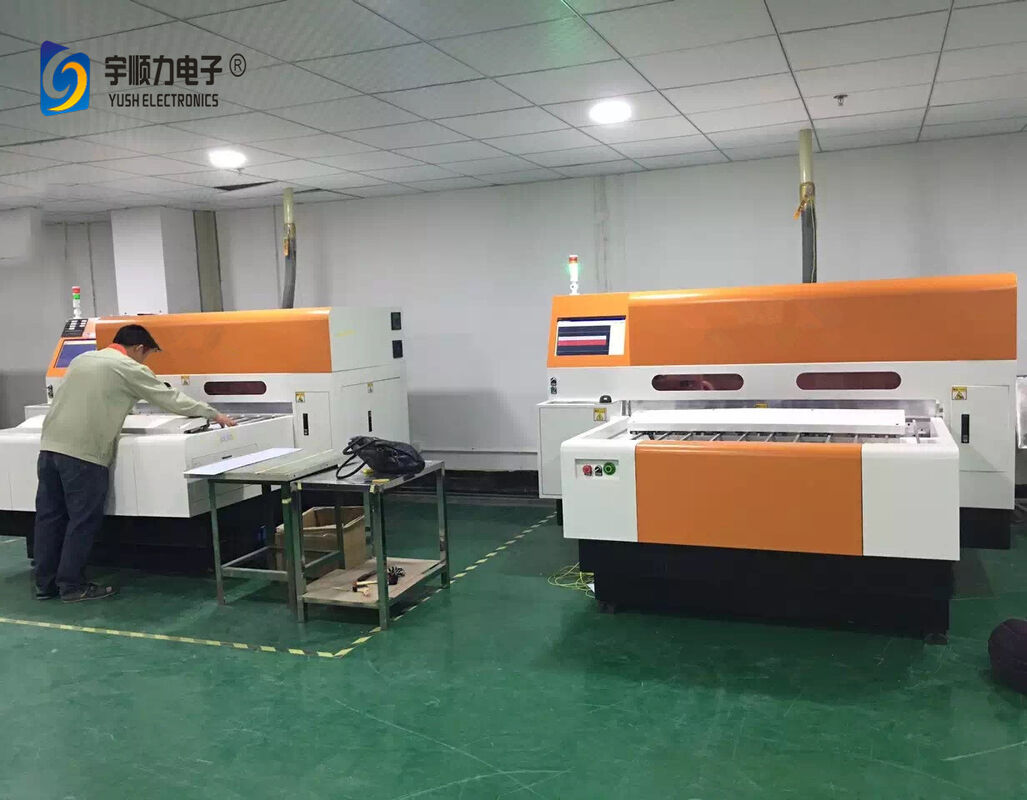

PCB CNC Automatic V Groove

PCB CNC Automatic V Groove Machine

Precision CNC V-CUT Machine Design Features

Our Yush series precision CNC V-CUT machines are engineered using a multidisciplinary digital prototyping system that integrates joint design and simulation during the development phase. This advanced approach enables comprehensive testing and verification of product features and performance against design specifications, resolving interdisciplinary conflicts and achieving optimal system coupling for enhanced product quality and superior performance.

All machine bases are constructed from premium "Tarzan Green" or "Jinan Green" granite that has undergone stress relieving treatment, ensuring exceptional rigidity and long-term stability for consistent precision performance.

Technical Specifications

Parameter	Specification
Machine Dimensions	1560 × 2100 × 1585mm
Working Height	920 ± 50mm
Machine Weight	185kg
Air Pressure Requirement	5kg/cm²
Job Board Capacity (YSVC-450C)	680mm × 630mm (max) & 110mm × 110mm (min)
Processing Thickness Range	0.3 ~ 3.2mm
Tool Specifications	Diameter: φ120mm, Inner Diameter: φ25.4mm
Positioning Pin Diameter	2mm (6 pins)
Cutting Speed	0 ~ 50m/min

About YUSH Electronic Technology

Founded in 2004 and located in Jiangsu, China's world-renowned manufacturing hub, YUSH Electronic Technology Co., Ltd specializes in professional PCB separator and PCB depaneling equipment machinery. Our company operates advanced production and processing facilities supported by an experienced development and manufacturing team, with over half of our personnel possessing more than 10 years of expertise in the electronic equipment industry.

Since our inception, we have focused on developing and manufacturing PCB separators and depaneling machines, prioritizing product quality, operational safety, and continuous innovation. Our commitment has resulted in high-quality, stable-performance, cost-effective products that enhance production yields, increase productivity, and strengthen our customers' market competitiveness.

We offer comprehensive PCB separation solutions including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router systems. Our reputation for quality and competitive pricing has established a global customer base, positioning YUSH as one of China's leading PCB separator production facilities.
