Name: Pcb Guillotine Machine . Pcb Lead Cutter. Pcb Lead Cutting Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSVC-3
Price: 10 USD
Availability: InStock

Detalles del producto

Lugar de origen: Jiangsu, China

Nombre de la marca: YUSH

Número de modelo: YSVC-3

Pago y términos de envío

Cantidad de orden mínima: 1 juego

Precio: $10,000 / set

Obtenga el mejor precio

Detalles del producto

Descripción del producto

Resaltar:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB guillotine lead cutter, PCB depaneling cutting machine, PCB lead trimming machine


Peso:	85 kg de peso	Fuerza:	40W
Modelo:	YSVC-3	Tamaño del paquete:	780mmx500mmx620m m
Minimizar el grosor:	0.3-3.5 mm	Peso de la máquina:	185 kg
Longitud máxima de panelado:	Ilimitado	Altura componente máxima:	50mm
Min Board Thickness:	0,3 mm	Max Board Thickness:	2,0 mm
Acceso a los componentes:	1mm	Método de control:	accionado neumáticamente
método de operación:	Pedal de pie	Componentes principales:	Motor
Estrés de depanelado:	Sin flexión/tensión

Peso:	85 kg de peso
Fuerza:	40W
Modelo:	YSVC-3
Tamaño del paquete:	780mmx500mmx620m m
Minimizar el grosor:	0.3-3.5 mm
Peso de la máquina:	185 kg
Longitud máxima de panelado:	Ilimitado
Altura componente máxima:	50mm
Min Board Thickness:	0,3 mm
Max Board Thickness:	2,0 mm
Acceso a los componentes:	1mm
Método de control:	accionado neumáticamente
método de operación:	Pedal de pie
Componentes principales:	Motor
Estrés de depanelado:	Sin flexión/tensión

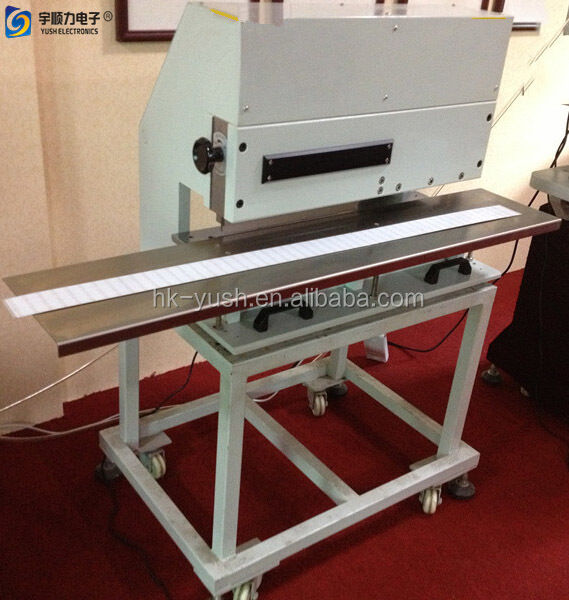

Pcb Guillotine Machine . Pcb Lead Cutter. Pcb Lead Cutting Machine

PCB Guillotine Machine - PCB Lead Cutting Machine

YSVC-3 Model - Professional PCB depaneling solution for efficient and safe board separation

Technical Specifications

Model	YSVC-3
The Longest Cut	Unlimited
Package Size	780mm x 500mm x 620mm
Cut Thickness	0.3-3.5mm
Machine Weight	185Kg

Application Scope

Cut any length metal board safely and easily
Separates long boards directly without turning direction
Separates boards up to 2.0mm thick metal board
Shears boards safely with parts as close as 1mm to the score line, including ceramic capacitors
Operator foolproof design - panels cannot be inserted into knives except on the score line
Handles high components up to 50mm
Avoids bow waves that can occur with round knives
Easy adjustment of distance between knives

Key Advantages

Maximum PCB depaneling length is unlimited
Depaneling PCB without bending and tension stress
Safety use with easy operation
Depaneling process without vibrations

Technical Features

Designed to depanel pre-scored PCB carefully without bending and tension stress
Even sensitive SMD components like ceramic capacitors remain undamaged during depaneling
Thin boards down to 0.3mm can be worked safely
Vibration-free depaneling process
Pneumatic-driven and electromagnetic valve control method
Foot pedal operation for depaneling control
Accommodates components up to 50mm near V-groove
Easy adjustment of PCB insertion gap
