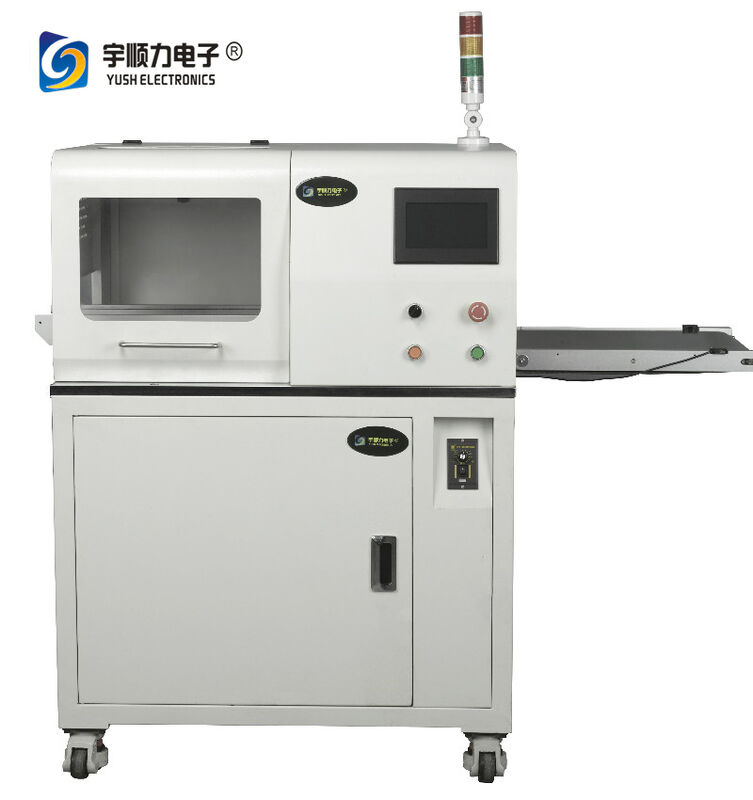

High Speed Stable Quality Fully Automatic PCB Cutting Machine for PCB

Detalles del producto

Lugar de origen: Cantón, China

Nombre de la marca: YUSH

Pago y términos de envío

Cantidad de orden mínima: 1 juego

Precio: $10,000 / set

Obtenga el mejor precio
Resaltar:

fully automatic PCB depaneling machine

,

high speed PCB cutting machine

,

stable quality PCB depaneling machine

Peso:
300 kilos
Fuerza:
10 kW
Voltaje:
220V/110V
Modelo:
YSV-3A
Dimensiones:
L1020 * W650 * H600 MM
Longitud máxima del tablero:
350 mm
Ancho de panel:
50 ~ 230 mm
Espesor de depósito:
0,3 ~ 3,5 mm
Límite de altura del componente:
35 mm (superior), 20 mm (inferior)
Voltaje de funcionamiento:
CA 110 ~ 220 V 50/60 HZ
Presión de trabajo:
0.6-0.8MP
Material de la hoja:
Acero de alta velocidad importado
Dispositivo de seguridad:
Dispositivo eléctrico de seguridad ocular
Componentes principales:
PLC, caja de cambios, motor, bomba
Método de corte:
Cuchillo redondo, cuchillo recto.
Peso:
300 kilos
Fuerza:
10 kW
Voltaje:
220V/110V
Modelo:
YSV-3A
Dimensiones:
L1020 * W650 * H600 MM
Longitud máxima del tablero:
350 mm
Ancho de panel:
50 ~ 230 mm
Espesor de depósito:
0,3 ~ 3,5 mm
Límite de altura del componente:
35 mm (superior), 20 mm (inferior)
Voltaje de funcionamiento:
CA 110 ~ 220 V 50/60 HZ
Presión de trabajo:
0.6-0.8MP
Material de la hoja:
Acero de alta velocidad importado
Dispositivo de seguridad:
Dispositivo eléctrico de seguridad ocular
Componentes principales:
PLC, caja de cambios, motor, bomba
Método de corte:
Cuchillo redondo, cuchillo recto.
High Speed Stable Quality Fully Automatic PCB Cutting Machine for PCB
High Speed Stable Quality Fully Automatic PCB Cutting Machine for PCB
Product Overview
This automatic tool depaneling machine is engineered for precision separation of various PCB puzzle boards, with exceptional performance on double-sided circuit boards with mounted components.
Key Features
  • PLC human-machine interface with microcomputer-controlled pneumatic braking system for precise cutting cycles and stroke control
  • Automatic PCB board feeding with microcomputer yield counting for production monitoring
  • Integrated conveyor belt system delivers separated boards directly to testing/assembly lines
  • Stationary PCB board during depaneling with rotating round knives and vertical straight knives to prevent component damage
  • Electric eye safety protection system for secure operation
High Speed Stable Quality Fully Automatic PCB Cutting Machine for PCB 0 High Speed Stable Quality Fully Automatic PCB Cutting Machine for PCB 1
Technical Specifications
ParameterSpecification
Device NameFull Automatic PCB Depaneling Machine
ModelYSV-3A
User InterfacePLC Human-Machine Interface
Maximum Board Length350mm
Depaneling Width50-230mm
Board Thickness Range0.3-3.5mm
Component Height Limits35mm (top), 20mm (bottom)
Operating VoltageAC 110-220V 50/60Hz
Working Pressure0.6-0.8MPa
Blade MaterialImported High-Speed Steel
AppearanceWhite Paint (custom colors available)
Dimensions1020×650×600mm (L×W×H)
Safety DevicesElectric Eye Protection System
Weight86kg
High Speed Stable Quality Fully Automatic PCB Cutting Machine for PCB 2 High Speed Stable Quality Fully Automatic PCB Cutting Machine for PCB 3
Manufacturer Information
YUSH Electronic Technology Co., Ltd., founded in 2004 and located in Jiangsu, China, specializes in professional PCB separator and depaneling equipment manufacturing. With advanced production facilities and an experienced engineering team (half with over 10 years industry expertise), the company has established itself as a leading PCB separation equipment production base in China.
Since 2004, YUSH has focused on developing high-quality, safe, and innovative PCB depaneling solutions. The product range includes manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router types, serving customers worldwide with reliable performance and competitive pricing.
