Resaltar:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB depaneling machine for assembly, practical PCB depaneling tool, PCB depaneling machine with warranty


Peso:	350 kg	Fuerza:	110V/220V CA 60HZ/50HZ
Tamaño:	L1300W400H1000mm	Espesor de PCB:	0.8-3.0 mm
Componentes principales:	PLC, motor	Velocidad de corte:	Ajustable
Ajuste del cortador superior:	0-5mm	Ancho de PCB único:	15-20 mm
Material de la hoja:	Acero de alta velocidad Skh51	Ancho de tablero aplicable:	>400m m
Proceso de corte:	Ilimitado	Ajuste del cortador:	Pantalla de visualización
Cinta transportadora:	Incluido	cortadores múltiples:	Sí
Tipo:	Aire

Peso:	350 kg
Fuerza:	110V/220V CA 60HZ/50HZ
Tamaño:	L1300W400H1000mm
Espesor de PCB:	0.8-3.0 mm
Componentes principales:	PLC, motor
Velocidad de corte:	Ajustable
Ajuste del cortador superior:	0-5mm
Ancho de PCB único:	15-20 mm
Material de la hoja:	Acero de alta velocidad Skh51
Ancho de tablero aplicable:	>400m m
Proceso de corte:	Ilimitado
Ajuste del cortador:	Pantalla de visualización
Cinta transportadora:	Incluido
cortadores múltiples:	Sí
Tipo:	Aire

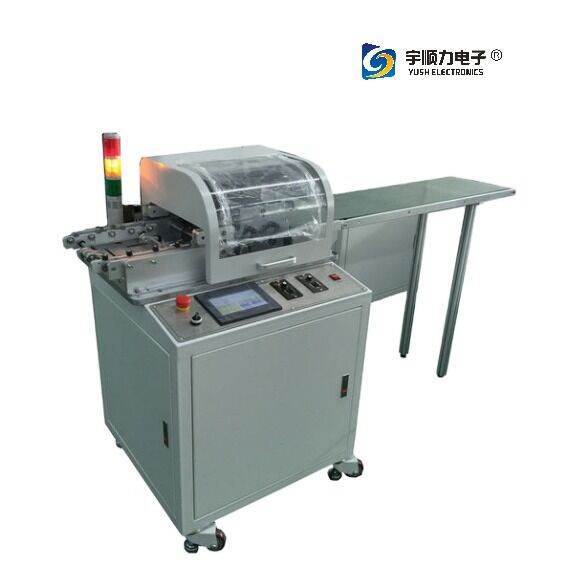

High Quality Practical PCB Depaneling Machine for PCB Assembly

Key Features & Benefits

Integral shaft design for top and bottom knives ensures easy installation and handling
Computer screen control with production counting and direct gap display
Compatible with all V-cut PCB boards
Reduces stress during cutting to prevent solder joint cracking
Multiple cutter configuration enables simultaneous cutting of several boards
Top cutter wheel adjustable from 0-5mm for precision control
Adjustable knife distance suitable for single PCB boards within 15-20mm width
SKH51 high-speed steel blades for extended service life and wear resistance
Variable cutting speed controlled by convenient turn-knob adjustment
Integrated conveyor belt for automatic board ejection and seamless production line integration
Simple, efficient operation ideal for high-volume mass production

Material Compatibility

This depaneling machine efficiently processes LED panels, fiberboards, aluminum boards (400mm+), and specialized board materials.

Technical Specifications

Power Supply	110V/220V AC 60Hz/50Hz
Dimensions	1300mm (L) × 400mm (W) × 1000mm (H)
Weight	350kg
Cutting Process	Unlimited operation capability
PCB Thickness Range	0.8-3.0mm
Compatible Materials	LED panels, fiberboards, aluminum boards (400mm+), special boards
