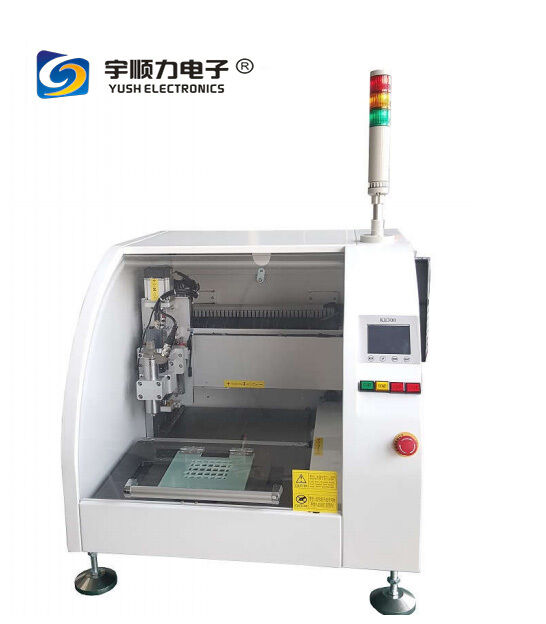

Desktop PCB Router Milling Machine

Detalles del producto

Lugar de origen: Cantón, China

Nombre de la marca: YUSH

Pago y términos de envío

Cantidad de orden mínima: 1 juego

Precio: $10,000 / set

Obtenga el mejor precio
Resaltar:

desktop PCB router milling machine

,

PCB depaneling machine with warranty

,

compact desktop PCB milling machine

Peso:
135 KILOGRAMOS
Fuerza:
10 kW
Voltaje:
220V/380V
Modelo:
YS-L530
Dimensión:
Largo 623 x ancho 737 x alto 587 mm
Potencia de la máquina:
3.6kw
Potencia del limpiador:
2.2KW/220V
Dimensión de la tabla:
Las medidas de ensayo se aplicarán en el caso de los vehículos de motor de las categorías M1 y M2.
Velocidad de corte:
0-100mm/s
Precisión de repetibilidad:
±0,01 mm
Área de trabajo:
X:0-260 mm, Y:0-260 mm, Z:0-80 mm
Espesor de PCB:
0,5-5mm
Diámetro del bit del router:
0.8-3.0 mm
Velocidad del husillo:
60000 rpm
Prensa aérea:
0.4MPA
Peso:
135 KILOGRAMOS
Fuerza:
10 kW
Voltaje:
220V/380V
Modelo:
YS-L530
Dimensión:
Largo 623 x ancho 737 x alto 587 mm
Potencia de la máquina:
3.6kw
Potencia del limpiador:
2.2KW/220V
Dimensión de la tabla:
Las medidas de ensayo se aplicarán en el caso de los vehículos de motor de las categorías M1 y M2.
Velocidad de corte:
0-100mm/s
Precisión de repetibilidad:
±0,01 mm
Área de trabajo:
X:0-260 mm, Y:0-260 mm, Z:0-80 mm
Espesor de PCB:
0,5-5mm
Diámetro del bit del router:
0.8-3.0 mm
Velocidad del husillo:
60000 rpm
Prensa aérea:
0.4MPA
Desktop PCB Router Milling Machine
Desktop PCB Router Milling Machine
Desktop  PCB  Router  Milling  Machine 0
Key Features
  • Bottom dust collection system utilizing free fall theory for optimal dust removal
  • Specialized fixtures ensure secure positioning to maintain cutting accuracy
  • Automatic system correction based on product installation position for high-precision cutting
  • Built-in static eliminator removes electricity and dust while air nozzles continuously work to prevent static damage and dust accumulation
  • Safety door design reduces noise, contains dust, and enhances operational safety
  • Integrated dust collection box with maintenance scheduling based on cutting requirements
Applications
Ideal for separating stamp hole PCB boards and irregular joint PCB boards
Desktop  PCB  Router  Milling  Machine 1
Technical Specifications
Function Items Hardware Demand
Model YS-L530
Dimension L623*W737*H587mm
Power 220V/50HZ
Machine Power 3.6KW
Weight About 300KG
Cleaner Dimension Inside / L650*W500*H550mm
Cleaner Wattage 2.2KW/220V
Table Dimension 260mm*260mm
Cutting Speed 0-100mm/s
X,Y,Z Axis Driving Speed X, Y axis 0-1000mm/s (min), Z axis 0-750mm/s (min), servo motor drive
Repeatability Accuracy ±0.01mm
Working Area X:0-260mm, Y:0-260mm, Z:0-80mm
PCB Thickness 0.5-5mm
Router Bit Diameter 0.8-3.0mm
Cutting Precision ±0.01mm
Cutting Ability Linear, Circular, U-curve, Arc, L-curve
Cutter Change Manual, tools needed
Spindle Speed 60000rpm
Spindle Cooling System Air cooling mode
Safety Device Safety door and door lock sensor
Voice Control ≤78 dB (measured in 1M distance)
