Name: High Efficiency CT-Series Desktop Semi-automatic Press-fit Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: CT-1021A
Price: 5800 USD
Availability: InStock

Detalles del producto

Lugar de origen: China, Guangdong

Nombre de la marca: YUSH

Certificación: CE

Número de modelo: CT-1021A

Pago y términos de envío

Cantidad de orden mínima: 1

Precio: USD5800

Detalles de empaquetado: Estuche de madera

Tiempo de entrega: 20 días de trabajo

Condiciones de pago: L/C, D/A, D/P, T/T

Capacidad de la fuente: 1000

Obtenga el mejor precio

Detalles del producto

Descripción del producto

Resaltar:
                                                                                                                                                                                                                semi-automatic press-fit machine, desktop press-fit machine, high efficiency SMT press-fit


Max. Presione la fuerza.:	0.05t	Método de control:	PC industrial+Servo Motor
Accidente cerebrovascular de prensa efectivo:	100 mm	Presione el tamaño del bloque:	100L x 50W mm
Dispositivo de seguridad:	Cortina ligera

Max. Presione la fuerza.:	0.05t
Método de control:	PC industrial+Servo Motor
Accidente cerebrovascular de prensa efectivo:	100 mm
Presione el tamaño del bloque:	100L x 50W mm
Dispositivo de seguridad:	Cortina ligera

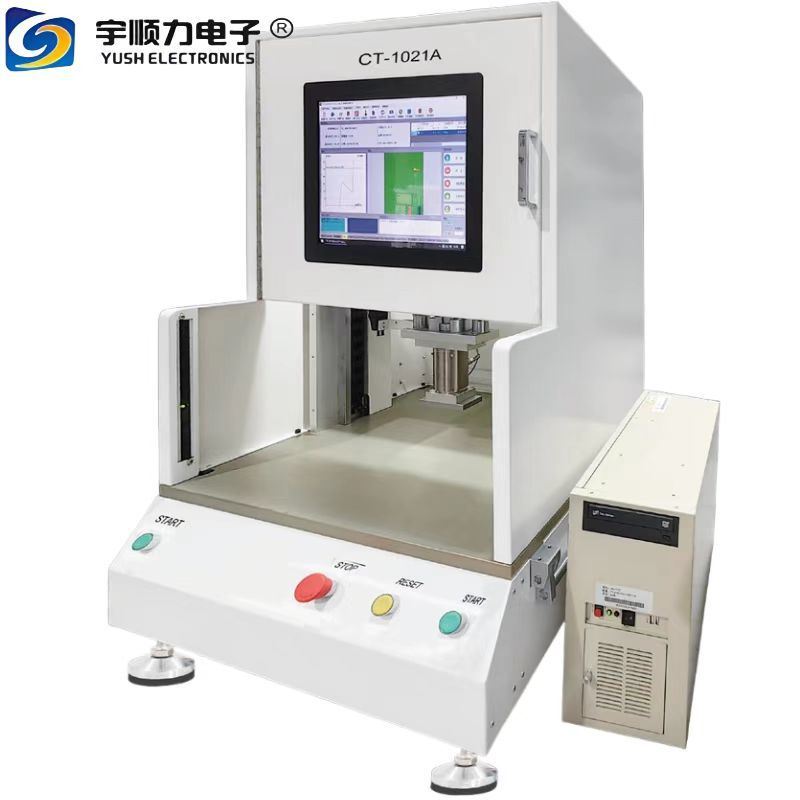

High Efficiency CT-Series Desktop Semi-automatic Press-fit Machine

Product Characteristics

H-shaped structure: Consists of two vertical frames and horizontal beam with high compressive strength and deformation resistance, ensuring equipment stability
Servo motor drive enables real-time monitoring of pressure, displacement, and speed
Precise control of ram displacement and speed achieves high-precision press-fitting, effectively avoiding overpressure and underpressure
Real-time pressure monitoring with closed-loop control throughout the pressing process
Controlled by industrial computer with comprehensive SPC management, log management, user permission management, and program management
Equipped with mold and component databases for data management, with unlimited program capacity
Features pressure curve sampling control, curve slope control, and pressure/position/speed control for high-quality dynamic controllable pressing
Automatic saving, envelope, and analysis software package for pressure curve
Component alignment via laser-assisted positioning
Safety measures include dual-button start and light curtain to ensure operational safety
Supports both Chinese and English interfaces, with MES data transmission capability
Offers online and offline programming functionality
